Universal Solar Panel Bracket Small - VMount-Bracket_SM

In Stock

Universal Solar Panel Bracket Small - VMount-Bracket_S

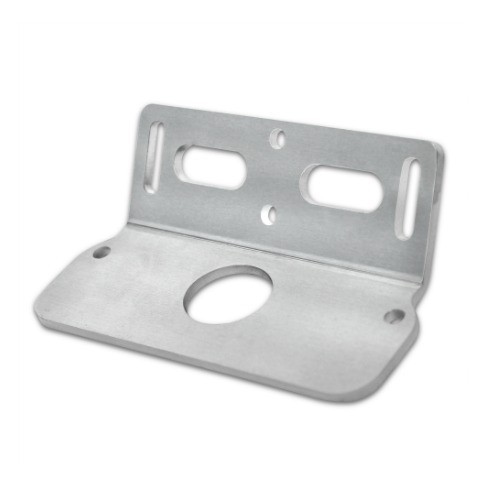

Attach a Voltaic solar panel to any vertical pipe. Rugged 3mm aluminum is built to withstand high winds and rough conditions. The bracket is compatible with our 2 and 3.5 Watt solar panels. Does not include u-bolt or pipe clamp.

  • Material : 3mm 6061 aluminum
  • Weight: 0.1lbs [54g]
  • Angle From Horizontal40 degrees


Brand Voltaic
  • Voltaic solar panels: 2, and 3.5 Watt panels

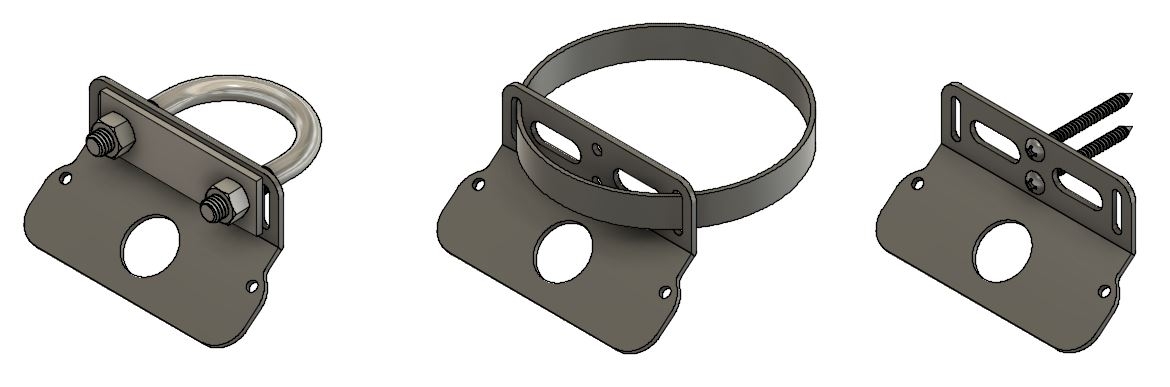

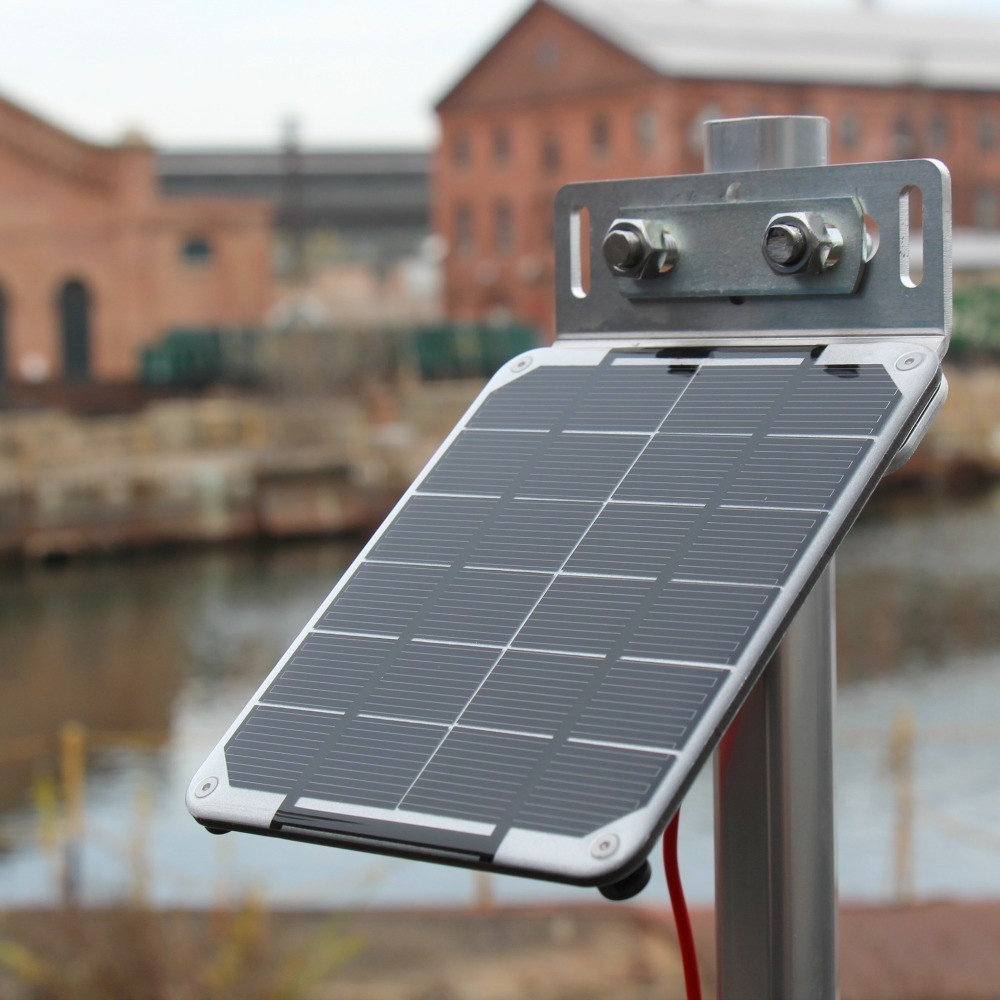

  • U-Bolt compatibility for vertical pole: 0.75-2" [16mm-51mm] (will support 1/2" pipe)

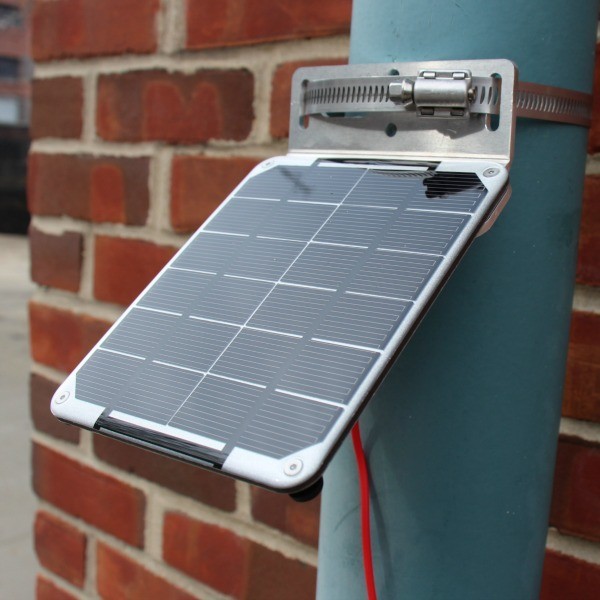

  • Pipe clamp compatibility for vertical pole: +2" [+51mm]
  • Max U-Bolt Thickness: 3/8" [9mm]
